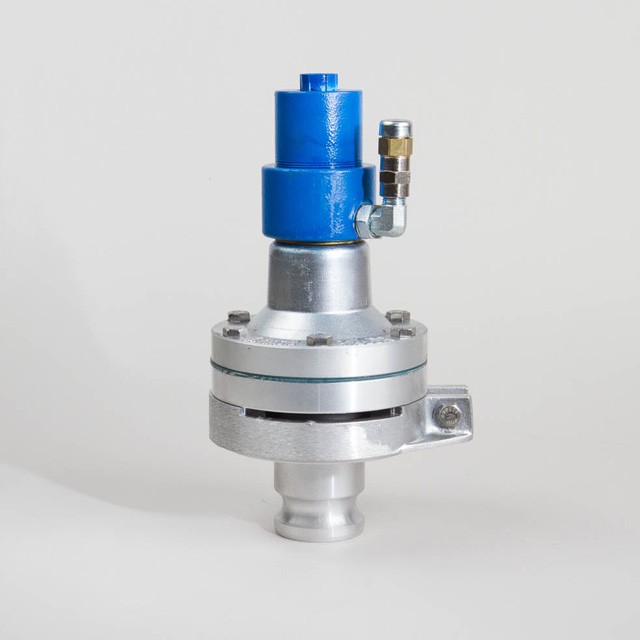

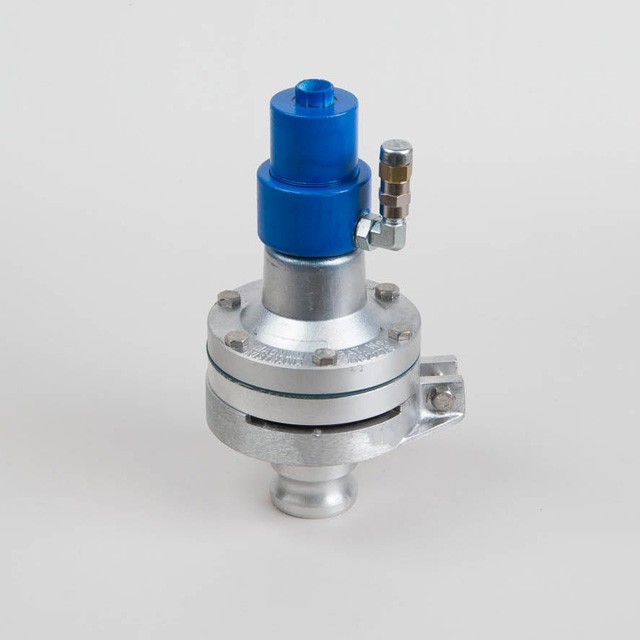

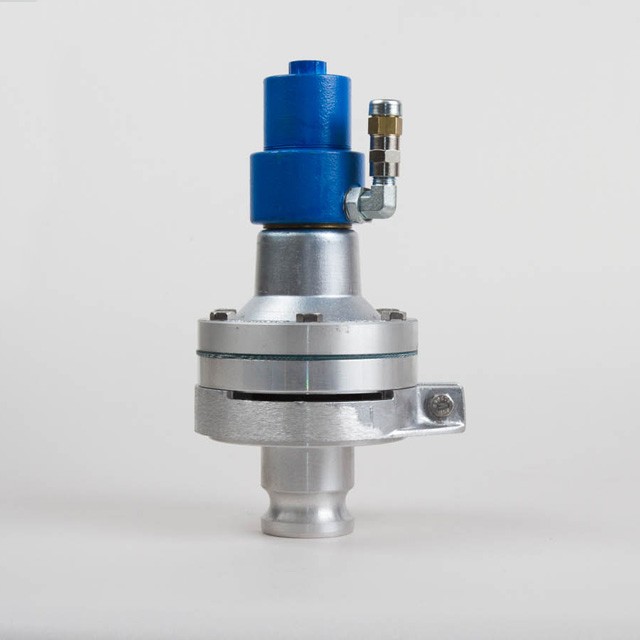

1.5″ Single Acting Hydraulic Valve

The Magnum MMV/B-H-DA-MK2 is the industry standard in hydraulically operated double acting mini spray head valves.

Manufactured from marine grade alloy and weighing just 3kg, the compact design and shape allows fast and easy installation to any piping configuration from 40mm (1.5″) nominal bore. With flow controlled by Magnum’s low maintenance polymer inserts, the MMV/B-H-DA-MK2 eliminates the need for addition water control valves (ball, butterfly or knife).

The fully adjustable spray pattern provides a flat, dense and even fan spray throught the entire arc of operation with a throw up to 12 metres by 11 metres wide. Water flowrate can be adjusted from 0 – 450 litres per min (approx).

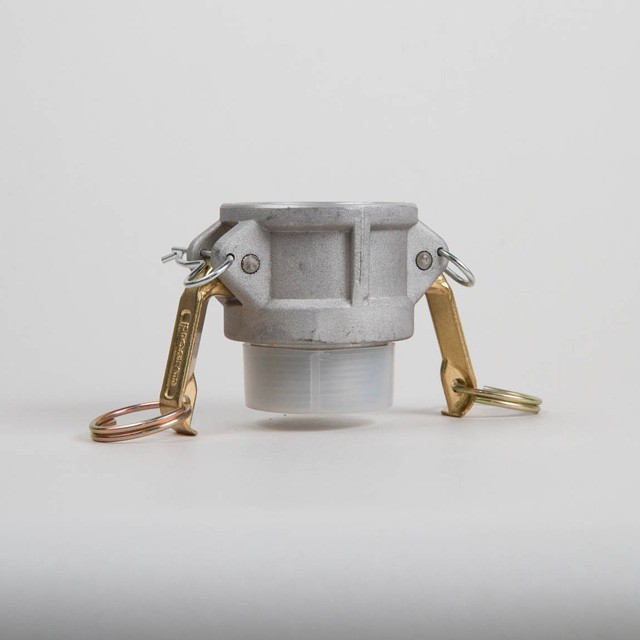

The valve is opened and closed hydraulically (double action), operated from the cabin via electronic switching. Standard mounting is via camlocks facilitating easy installation and removal, though rollgroove mounts are available where greater security is required.

Valves are fully pressure tested prior to packaging, include a full warranty on parts, and are fully serviceable in the field, maximising the up-time of your equipment. Featuring a fully Australian design construction, the MMV/B-H-DA-MK2 is the safest choice for water dispersal.
